Aeotec LED bulb gen5

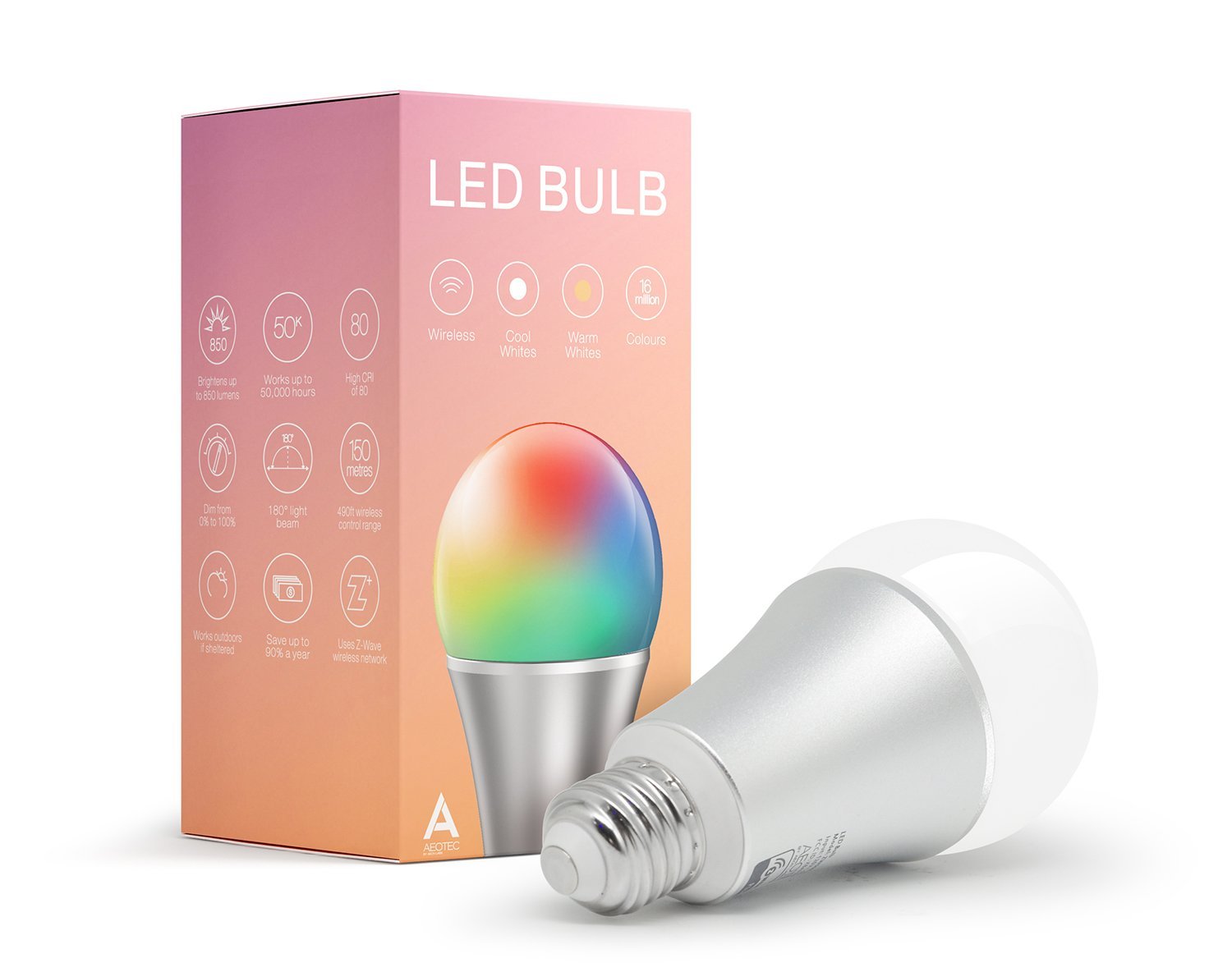

Aeotec by Aeon Labs ZW098 Aeon Labs LED Bulb, Small, White

Brief information

• Aeon labs LED bulb is a swith multilevel device based in z-wave.
• The bulb has 5 main colors: red, green, blue, warm white and cold white
• Has repeater role in z-wave mess network
• Can be upgrade firmware via OTA

Specification

• Bulb holder type: E26 for US version, E27 for EU/AU version
• Max operation power: 9W
• Max standby power: 0.7W
• Operating temperature: -10 ~ 45 oC
• Relative humidity: 8 ~ 80%
• Operating range: up to 500 feet/150 meters

Inclusion/Exclusion to/from a network

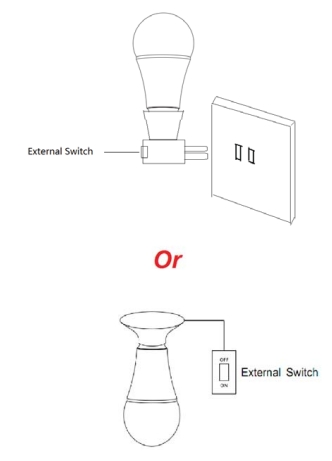

1. LED bulb must be installed with external switch
2. Put controller to Inclusion/Exclusion mode
3. Turn off then turn on (via external switch), repeat 3 times within 2 seconds
4. LED will change its color to indicate include/exclude completes

Link in Amazon

https://www.amazon.com/Aeotec-Aeon-Labs-ZW098-Small/dp/B00VQISQW4

Configuration description

1. Enable function of using external switch to turn on/off

   • Parameter: 34 (0x22)
   • Size: 1 byte

   • Value:

     0x00: enable 0x01: disable

   • Default: 0x00

2. Enable function of using external switch to change color

   • Parameter: 35 (0x23)
   • Size: 1 byte

   • Value:

     0x00: enable 0x01: disable

   • Default: 0x01

3. Enable to send notification to associated devices (group 1) when LED state is changed

   • Parameter: 80 (0x50)
   • Size: 1 byte

   • Value:

     0x00: nothing 0x01: hail CC 0x02: basic CC report

   • Default: 0x01 - for US version and 0x02 for others

4. Lock configuration

   • Parameter: 252 (0xFC)
   • Size: 1 byte

   • Value:

     0x00: un-lock configuration 0x01: lock configuration

   • Default: 0
