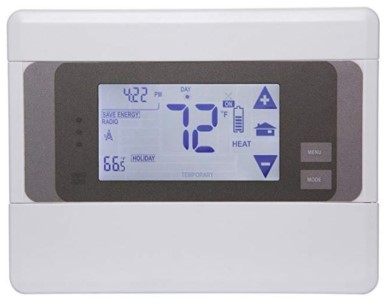

Radio Thermostat Z-Wave CT100 Thermostat

Product Description

1. Ultra Slim Form Factor
2. Two Year Battery Life
3. 4 Stage Heat
4. Bright Display with Touch Screen

Working with PhD

1. Control your Radio Thermostat and other connected devices with the Zinno app available on iOS&Android
2. With PhD, you could automatically turn Radio Thermostat on or off in many scenarios, such as door opens/closes, human appearance detected, and much more
3. Also, you can automate the Radio Thermostat with PhD Scence routes, like Good Morning, Goodnight…
4. Control Radio Thermostat with voice commands using PhD and the Google Assistant or Amazon Alexa

Add Radio Thermostat to PhD’s network

1. On the Zinno app, press Left Menu Bar, then select “Devices”
2. Select “+” button to put the PhD in inclusion mode, keep your thermostat close to PhD within 10 feet (3 meters)

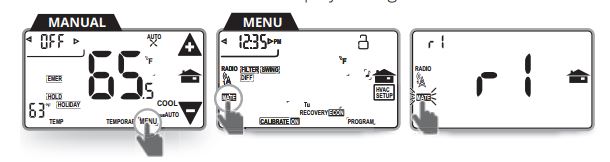

3. From the CT100’s Menu screen, touch MATE under the radio icon. The Network Include screen displays a large “r1”, then touch MATE one more time
4. PhD will announce “Found Device”, and Zinno app will display the dialog box, asking user to interact with device one more time
5. Repeat step #3, PhD will announce “The device is being added”
6. If adding the device successfully, PhD will announce “Adding Radio Thermostat success” and on Zinno app will display the dialog boxes that indicate user has added device successfully
7. Also, when the CT100 has successfully joined to PhD Z-Wave network, the MATE icon is replaced by the LINK icon under the radio tower

Specification

• Model number: CT100
• Power source: 24VAC from HVAC System, Battery
• Battery Type: x4 AA
• Protocol: Z-Wave
• Dimension: 8 x 6 x 1 inches
• Weight: 0.8 pounds
• Color: White
