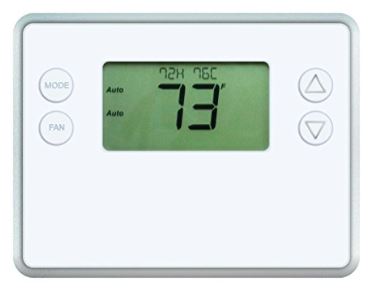

GoControl Z-Wave Plus GC-TBZ48 Thermostat

Product Description

1. Control your home’s climate via a mobile device.
2. Powered by battery or HVAC system’s 24VAC “C” wire.
3. Helps conserve energy.
4. Easy to install and program.
5. Works with most contemporary central HVAC systems.

Working with PhD

1. Control your GoControl Thermostat and other connected devices with the Zinno app available on iOS&Android
2. With PhD, you could automatically turn GoControl Thermostat on or off in many scenarios, such as door opens/closes, human appearance detected, and much more
3. Also, you can automate the GoControl Thermostat with PhD Scence routes, like Good Morning, Goodnight…
4. Control GoControl Thermostat with voice commands using PhD and the Google Assistant or Amazon Alexa

Add GoControl Thermostat to PhD’s network

1. On the Zinno app, press Left Menu Bar, then select “Devices”
2. Select “+” button to put the PhD in inclusion mode, keep your thermostat close to PhD within 10 feet (3 meters)
3. Press any button to take thermostat out of sleep mode,

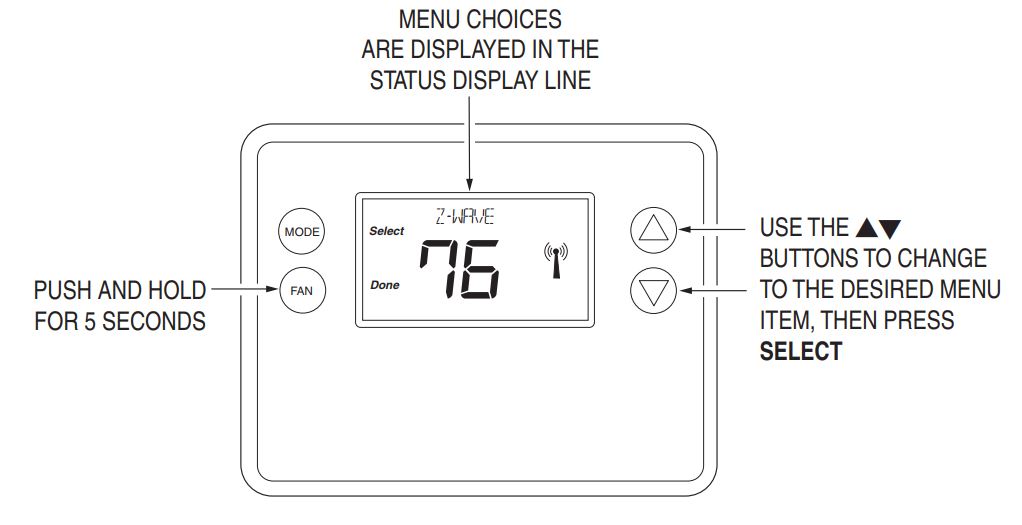

4. Press and hold FAN button for 5 seconds. SETUP will be displayed in the status display line
5. Scroll to “Z-Wave” using ▲▼ buttons, press SELECT (MODE button) to enter Z-Wave inclusion/exclusion mode on thermostat
6. On the screen of thermostat flashes “INSTALL”, press SELECT
7. PhD will announce “Found Device”, and Zinno app will display the dialog box, asking user to interact with device one more time
8. Press SELECT 2 more times
9. If adding the device successfully, PhD will announce “Adding Remote Thermostat success” and on Zinno app will display the dialog boxes that indicate user has added device successfully

Specification

• Model number: GC-TBZ48
• Power source: 24VAC from HVAC System, Battery
• Battery Type: x4 AA
• Protocol: Z-Wave Plus
• Dimension: 5.75 x 4.5 x 1 inches
• Weight: 1 pounds
• Color: White
