Jasco smart plugin module

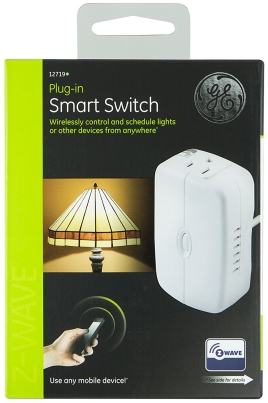

GE Z-Wave Wireless Smart Lighting Control Appliance Module, On/Off, Plug-In, White, Works with Amazon Alexa, 12719

../../../_images/jasco_smart_plugin_module_12719.jpg

Brief information

  • One Z-wave controlled AC outlet for standard incandescent lighting, CFL/LEDs, fans or small appliances
  • Remote ON/OFF control via the Z-Wave controller
  • Manual ON/OFF control with the front panel push button
  • One always-on pass-through AC outlet
  • Space efficient design
  • Does not block the lower outlet when plugged into the upper outlet of a duplex wall receptacle. (This assumes that the duplex receptacle is mounted with the ground pin down).
  • Plugs and cords for connected devices route to the side allowing close placement of furniture
  • Grounded 3-wire power connection for safety

Specification

  • Power 120VAC, 60Hz
  • Signal (Frequency) 908.42 MHz
  • Maximum load for both outlets 15 Amps, 1800W Resistive
  • Maximum load for the Z-Wave controlled outlet: 600W Incandescent, 1/2 HP Motor or 1800W Resistive
  • Range: Up to 100 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module.
  • Operating Temperature Range: 32-104° F (0-40° C)
  • For indoor use only.

Inclusion/Exclusion to/from a network

  1. Put controller to Inclusion/Exclusion mode
  2. Press program button once. Device will be included/excluded to/from zwave network.

Configuration description

There is no configuration in this device.
