Aeotec Smart Switch 6

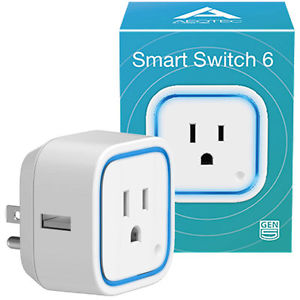

Aeotec by Aeon Labs ZW096 Smart Switch, Small, White

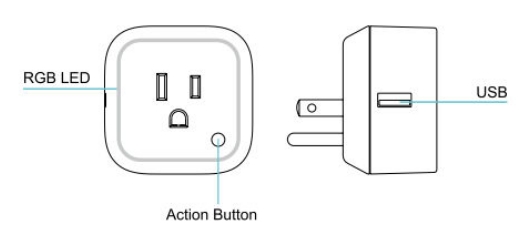

Operation

1. 1 short press:

   • Turn on/off output load
   • Send non-security Node Info frame
   • Include/Exclude when controller is in inclusion/exclusion mode

2. 2 short presses:

   • Send Security Node Info frame
   • Include/Exclude when controller is in inclusion/exclusion mode

3. Press and hold 20 seconds

   • Factory reset device

Specification

• Model number: ZW096
• Operating distance: Up to 300 feet/100 meters outdoors.

• Input: 120V~, 60Hz. (USA Version)

  230V~, 50Hz. (EU, AU, CN Version) 230V~, 60Hz. (BR version)

• Output: 120V~, 60Hz, Max 2.5A Resistor load. (USA Version)

  230V~, 50Hz, Max 2.5A Resistor load. (EU Version) 230V~, 50Hz, Max 2.5A Resistor load. (CN Version) 230V~, 50Hz, Max 2.5A Resistor load. (AU Version) 230V~, 60Hz, Max 2.5A Resistor load. (BR Version)

• Operating temperature: 0°C to 40 °C .
• Relative humidity: 8% to 80%

LED indication

1. Purple color 10%: output load is off

2. Green: Output load is in small wattage range

   • US version , the range of load wattage is [0W, 180W)
   • AU version , the range of load wattage is [0W, 345W)
   • EU version , the range of load wattage is [0W, 345W)

3. Yellow: Output load is in big wattage range.

   • US, the range of load wattage is [180W, 240W)
   • AU version , the range of load wattage is [345W, 460W)
   • EU version , the range of load wattage is [345W, 460W)

4. Red: Output load is in warning wattage range.

   • US, the range of load wattage is [240W,300W)
   • AU version , the range of load wattage is [460W, 575W)
   • EU version , the range of load wattage is [460W, 575W)

5. Purple LED fast blink: Enter into the wireless power level test mode
6. Green LED is switched to ON state for 2 seconds: wireless power level is good
7. Yellow LED is switched to ON state for 2 seconds: wireless power level is acceptable but latency can occur
8. Red LED is switched to ON state for 2 seconds: wireless power level is insufficient

Inclusion/Exclusion to/from a network

1. Put controller to Inclusion/Exclusion mode
2. Press program button once. Device will be included/excluded to/from zwave network.

Link in Amazon

https://www.amazon.com/Aeotec-Aeon-Labs-ZW096-Switch/dp/B00VQISOCG

Configuration description

N/A.
