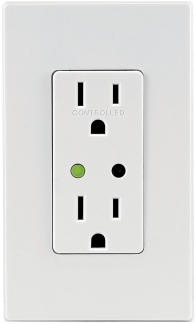

Leviton duplex receptacle outlet

Leviton DZR15-1RZ Decora Z-Wave Controls 15-Amp Tamper Resistant Split Duplex Receptacle, White/Light Almond, Works with Amazon Alexa

../../../_images/leviton_duplex_receptacle_dzr15.jpg

Features and benefits

  • 15A Tamper Resistant Split Duplex Receptacle
  • Compatible with Z-Wave hubs, security systems, and automation systems
  • Control Side
  • 1800W Incandescent, Electronic/Magnetic Low Voltage,
  • Fluorescent, ½ HP Motor
  • 120V 60HZ
  • White, Light Almond and Ivory faces included
  • Compatible with Z-Wave Network Wide Inclusion, Beaming and Security
  • Local Sensing- Turn a controlled lamp on by manually turning the lamp off then on
  • Configurable LED
  • Scene capable
  • Transient surge suppression built-in
  • Not for use with vizia rf+ systems

Specification

  • Controlled Outlet Rated:
    • 1800W Incandescent,
    • 1800VA Inductive,
    • 15A Resistive,
    • 1/2HP,
    • 120Vac, 60Hz
  • Operating Environment:
    • Temperature: 0 Deg C to 40 Deg C
    • Relative humidity: 20% to 90%

Inclusion/Exclusion to/from a network

  1. Put controller to Inclusion/Exclusion mode
  2. Press program button once. Device will be included/excluded to/from zwave network.

Configuration description

There is no configuration in this device.
