GE lighting control duplex

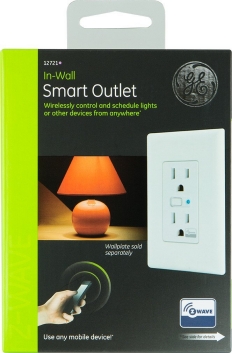

GE Z-Wave Wireless Smart Lighting Control Duplex Receptacle Outlet, On/Off, In-Wall, White, Works with Amazon Alexa, 12721

Key Features

• One Z-wave remote controlled AC outlet
• Remote ON/OFF control via the Z-Wave controller/network
• Manual ON/OFF control with the front panel pushbutton
• One Always-ON pass through AC outlet

Basic Operation

The connected light can be turned ON in two ways: - With a remote - Manually with the pushbutton on the Z-Wave receptacle

Specification

• Power 120VAC, 60Hz
• Signal (Frequency) 908.42 MHz
• Maximum load for both outlets; 1800W Resistive
• Maximum Load for the Z-Wave controlled outlet: 600W
• Incandescent, ½ HP Motor or 1800W (15A) Resistive
• Range: Up to 100 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module.
• Operating Temperature Range: 32-104° F (0-40° C)
• For indoor use only

Inclusion/Exclusion to/from a network

1. Put controller to Inclusion/Exclusion mode
2. Press z-wave button once. Device will be included/excluded to/from zwave network.

Link in Amazon

https://www.amazon.com/GE-Wireless-Lighting-Receptacle-12721/dp/B0013V1SRY

Configuration description

1. LED indicator

   • Parameter: 3 (0x03)
   • Size: 1 byte

   • Value:

     1. 0 = LED ON when turn OFF
     2. 1 = LED OFF when turn OFF

   • Default: 0
