Enerwave duplex receptacle outlet

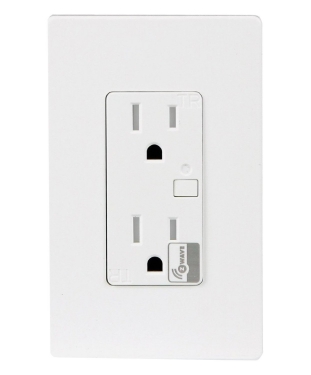

Enerwave ZW15R Z-Wave Wireless Duplex Outlet 15A Tamper Resistant Receptacles, 2 Free Wall Plates

../../../_images/enerwave_duplex_receptacle_zw15r.jpg

Features

  • Perfect replacement for regular receptacles, 120VAC, 15 Amp
  • Wireless Z-Wave technology creates a mesh network for command and
  • control interoperability with other Z-Wave compliant controller and devices
  • Manual and Remote ON/OFF control of any connected lighting and other electrical load for Z-Wave controlled outlet
  • Tamper-Resistant (TR) Receptacles keep you and your family safe
  • Reduce energy consumption and enjoy Wireless Home Automation
  • Enhance the value and technology of your condominiums and homes
  • Measures energy usage of any connected appliance/device

Specification

  • Power 120VAC, 60Hz
  • Incandescent: 1000W
  • Ballast: 1200VA
  • Resistive: 1800W (15A)
  • Motor: 1/2 HP
  • Signal (Frequency) 908.42 MHz
  • Range: Up to 100 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module.
  • Operating Temperature Range: 32-104° F (0-40° C)

Inclusion/Exclusion to/from a network

  1. Put controller to Inclusion/Exclusion mode
  2. Press program button once. Device will be included/excluded to/from zwave network.

Configuration description

  1. LED indicator
    • Parameter: 1 (0x01)
    • Size: 1 byte
    • Value:
      1. 0 = LED ON when turn OFF
      2. 1 = LED OFF when turn OFF
    • Default: 0
  2. Send Meter report interval (instant energy)
    • Parameter: 8 (0x08)
    • Size: 1 byte
    • Value:
      1. 0 = Not send
      2. 1 ~ 255: minutes
    • Default: 0
  3. Send Sensor multilevel report
    • Parameter: 9 (0x09)
    • Size: 1 byte
    • Value:
      1. 0 = Not send
      2. 1 ~ 255: minutes
    • Default: 0
  4. Send Meter report interval (accumulated energy)
    • Parameter: 10 (0x0A)
    • Size: 1 byte
    • Value:
      1. 0 = Not send
      2. 1 ~ 255: minutes
    • Default: 0
  5. Enable automatic notification to associated device when wattage changes
    • Parameter: 11 (0x0B)
    • Size: 1 byte
    • Value:
      1. 0 = Not report
      2. 1 = Send meter report only
      3. 2 = Send sensor multilevel report only
      4. 3 = Send both report
    • Default: 1
  6. Minimum change in wattage report
    • Parameter: 12 (0x0C)
    • Size: 1 byte
    • Value: 0 ~ 255 (0 ~ 25.5 watt)
    • Default: 10
