ZooZ Z-Wave Plus ZSE02 Motion Sensor

Product Description

1. Motion detection and wireless notifications (when included to a Z-Wave gateway controller)
2. Z-Wave Plus with improved 500 chip for faster and safer wireless communication
3. Two alternative power sources: 4 AAA batteries or mini USB cable (DC 5V / 1A)
4. May be associated and grouped with other Z-Wave devices for advanced home automation
5. Modern design will compliment any interior

Working with PhD

1. Monitor your ZooZ Motion Sensor and other connected devices with the Zinno app available on iOS&Android
2. Receive alerts from PhD if the ZooZ Motion Sensor detects movement
3. Associate ZooZ Motion Sensor with other smart devices in Zinno App, and set them to turn on or off when sensor detects movement

Add ZooZ Motion Sensor to PhD’s network

1. On the Zinno app, press Left Menu Bar, then select “Devices”
2. Select “+” button to put the PhD in inclusion mode, keep the sensor close to PhD within 3 feet (0.91 meter)

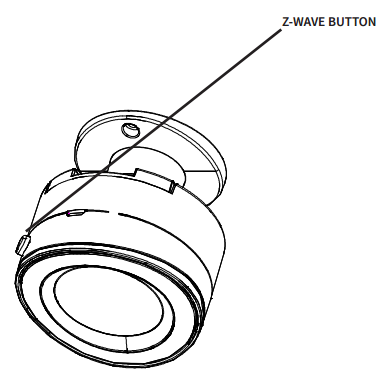

3. Press and release the Z-Wave button on the sensor case TWICE quickly (to lock and unlock it)
4. If detecting a new device successfully, PhD will announce “Found Device”, and Zinno app will display the dialog box, asking user to interact with device one more time
5. Repeat step #3, PhD will announce “The device is being added”
6. If adding the sensor successfully, PhD will announce “Adding ZooZ Motion Sensor success” and on Zinno app will display the dialog boxes that indicate user has added device successfully

Specification

• Model number: ZSE02
• Power source: Mini USB cable (DC 5V / 1A), Battery
• Battery type: x4 AAA batteries
• Protocol: Z-Wave Plus
• Dimension: 3 x 2 x 3 inches
• Weight: 0.9 pounds
• Color: White
