NYCE Zigbee NCZ-3041-HA Motion Sensor

../../../_images/nyce_motion.jpg

Product Description

  1. Compact Size
  2. Three color LED event indication/confirmation
  3. Long Battery Life (up to 5 years)
  4. Easy Battery Replacement
  5. ZigBee wireless Low Power Communication
  6. Easy Device Association with ZigBee Network
  7. Reports Occupancy/Vacancy within its viewing range
  8. Reports Temperature(±0.5C) & Humidity(±4%) (HA Only)

Working with PhD

  1. Monitor your NYCE Motion Sensor and other connected devices with the Zinno app available on iOS&Android
  2. Receive alerts from PhD if the NYCE Motion Sensor detects movement
  3. Associate NYCE Motion Sensor with other smart devices in Zinno App, and set them to turn on or off when sensor detects movement, or a change in temperature

Add NYCE Motion Sensor to PhD’s network

  1. On Zinno App, go to Menu → Devices → Tap “+” button to put PhD to inclusion mode

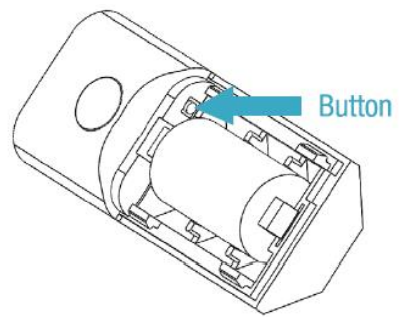

  2. Press program button 10 times
  3. LED changes color continuously when reseting successfully
  4. Wait for PhD completes inclusion/exclusion process
../../../_images/nyce_motion_i.png

Specification

  • Model number: NCZ-3041-HA
  • Power source: Battery
  • Battery type: CR2 Lithium
  • Protocol: Zigbee
  • Dimension: 2.3 x 1.0 x 0.73 inches
  • Weight: 0.07 pounds
  • Color: White
