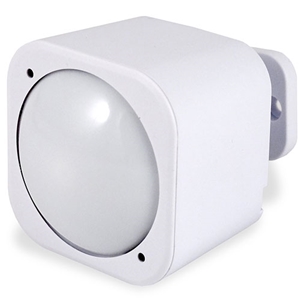

Aeotec Z-Wave Plus ZW100-A Multisensor 6

Product Description

1. 6-in-1 Z-Wave Plus MultiSensor: motion, humidity, temperature, light lux, UV, vibration sensor
2. 2 year battery life
3. Super-small at 1.8 inches. Can be installed in corner, in-wall, on shelf or in downlight

Working with PhD

1. Monitor Aeotec Multisensor 6 and other connected devices with the Zinno app available on iOS&Android
2. Receive alerts from PhD if the Aeotec Multisensor 6 detects movement
3. Associate Aeotec Multisensor 6 with other smart devices in Zinno App, and set them to turn on or off when sensor detects movement

Add Aeotec Multisensor 6 to PhD’s network

1. On the Zinno app, press Left Menu Bar, then select “Devices”
2. Select “+” button to put the PhD in inclusion mode, keep the sensor close to PhD within 10 feet (3 meters)

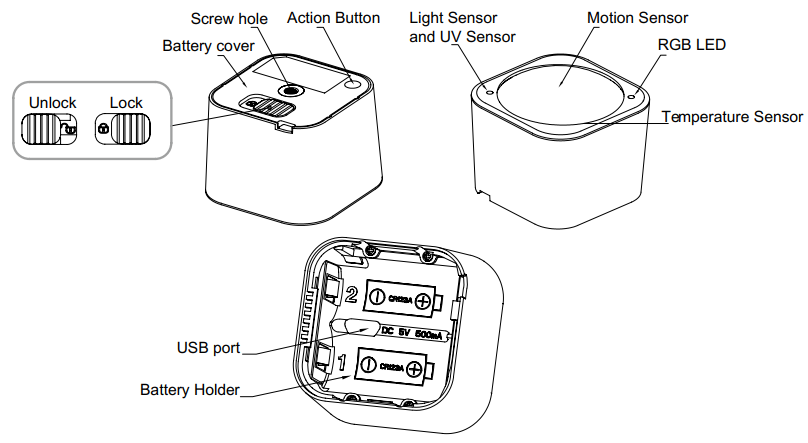

3. Press the Action Button on Aeotec Multisensor 6
4. If detecting a new device successfully, PhD will announce “Found Device”, and Zinno app will display the dialog box, asking user to interact with device one more time
5. Repeat step #3, PhD will announce “The device is being added”
6. If adding the sensor successfully, PhD will announce “Adding Aeotec Multisensor 6 success” and on Zinno app will display the dialog boxes that indicate user has added device successfully

Specification

• Model number: ZW100-A
• Power source: USB DC 5V, Battery
• Battery type: x2 CR123A batteries
• Protocol: Z-Wave Plus
• Dimension: 1.8 x 2.5 x 1.8 inches
• Weight: 0.13 pounds
• Color: White
