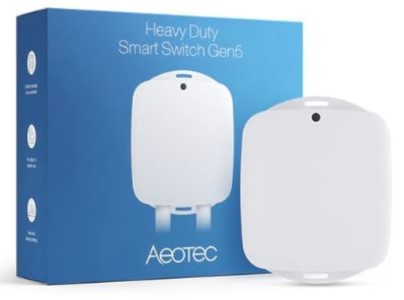

Aeon Labs Z-Wave Plus ZW078-A Heavy Duty Smart Switch Gen5

../../../_images/aeotec_heavy_duty_gen5.jpg

Product Description

  1. Control your heavy duty appliances, turning them on/off remotely
  2. Real-time energy monitoring and reporting
  3. Works with 40 amp appliances

Working with PhD

  1. Monitor and Control Aeon Labs Heavy Duty Switch Gen5 by PhD via the Zinno app available on iOS&Android
  2. Automate and schedule the operation of the high-power devices wired into the switch
  3. Calculate and report your spend in watts and kilowatt hours in real-time
  4. In the event of an emergency, PhD can be used to turn off the electronics that Heavy Duty Smart Switch are connected to

Add Aeon Labs Heavy Duty Switch to PhD’s network

  1. On Zinno App, go to Menu → Devices → Tap “+” button to put PhD to inclusion mode

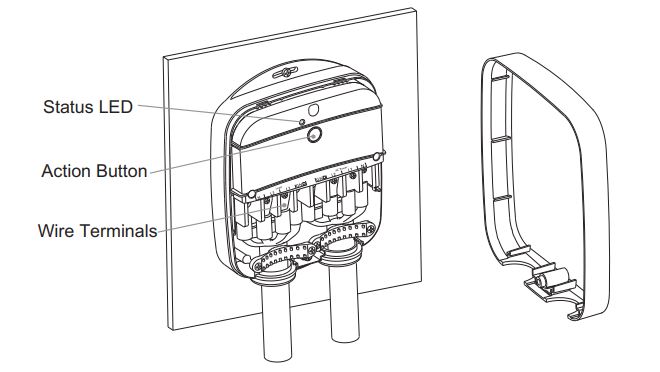

  2. Press Action button once. Device will be included/excluded to/from zwave network.
../../../_images/aeotec_heavy_duty_gen5_i.jpg

Specification

  • Model number: ZW078-A
  • Power rating: 240VAC, 50/60Hz, Max. 9600 Watts; 40A Resistor; 240VAC 5HP AC Motor
  • Protocol: Z-Wave Plus
  • Dimension: 5.9 x 4.7 x 1.6 inches
  • Weight: 1.05 pounds
  • Color: White
