Coolcam Z-Wave Plus NAS-DS01Z Door/Window Sensor

../../../_images/item137_Coolcam_doorsensor.jpg
  1. Be notified immediately through your smart phone or laptop when something at home is opened unexpectedly

Working with PhD

  1. Be monitored by PhD via the Zinno app available on iOS&Android
  2. The Speaker on Phd will annouce when receive the alert from the Coolcam Door/Window Sensor
  3. Associate Coolcam Door/Window Sensor with other smart devices in Zinno App, and set them turn on or off if the sensor detects doors or windows have been open

Add Coolcam Door/Window Sensor to PhD’s network

  1. On Zinno App, go to Menu → Devices → Tap “+” button to put PhD to inclusion mode

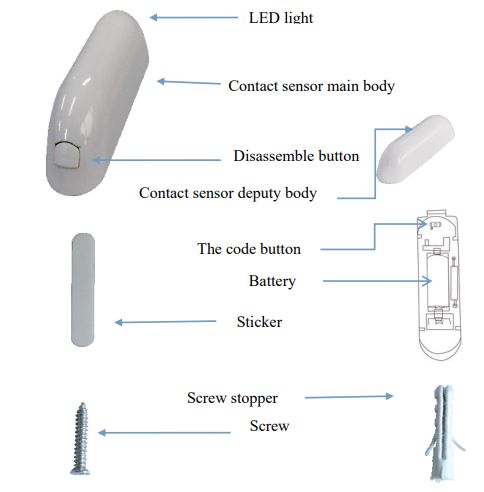

  2. Disassemble the contact sensor main body and insert the battery into the contact sensor
  3. Quickly, triple click the code button, LED light will flash for 5 times. Contact sensor will be detected and included in the Z-Wave network
../../../_images/item137_Coolcam_doorsensor-detail.jpg

Specification

  • Model number: NAS-DS01Z
  • Power source: Battery
  • Protocol: Z-Wave Plus
  • Battery type: CR14250
  • Dimension: 2.75 x 0.79 x 0.79 inches
  • Weight: 0.13 lb
  • Color: White
