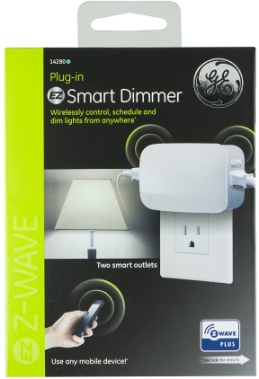

GE Plugin Smart Dimmer 14280
GE Z-Wave Plus Wireless Smart Lighting Control Lamp Module, Dimmer, Plug-In, 2 Simultaneously Controlled Outlets, Works with Amazon Alexa, 14280
Specification
- Power 120VAC, 60Hz
- Signal (Frequency) 908.4 / 916 MHz
- Total maximum load for both Z-Wave controlled outlet: 2.5A; 300W Incandescent or 100W Dimmable CFL/LED Z-Wave controlled outlet is fused @ 5A. This fuse is not user serviceable.
- Range: Up to 150 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module.
- Operating Temperature Range: 32–104° F (0–40° C)
- Indoor use only
Basic operation
- Manually turn the connected lamp(s) ON or OFF (press and release).
- Adjust the brightness level of the connected lighting by pressing and holding the button. Release the button when the desired level is attained.
Inclusion/Exclusion to/from a network
- Put controller to Inclusion/Exclusion mode
- Press and release program button once to reset device. Device will be included/excluded to/from zwave network.
Factory reset
- If plugged in, unplug the smart dimmer from the receptacle.
- Press and hold the top button for at least 3 seconds while you plug the smart dimmer into a receptacle.
Configuration description
N/A
