Aeotec Smart Dimmer

Aeotec Smart Dimmer 2E, Z-Wave Plug-in Dimmable Lamp Controller

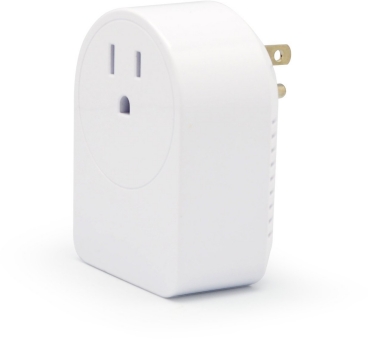

../../../_images/aeotec_smart_dimmer.jpg

Specification

  • Operating distance: Up to 550 feet / 150 meters outdoors.
  • Input: 120V~, 60Hz. (USA Version)
    230V~, 50Hz. (EU, AU Version)
  • Output: 120V~, 60Hz, Max 15A Resistor load. (USA Version)
    230V~, 60Hz, Max 16A Resistor load. (EU Version) 230V~, 60Hz, Max 10A/15A Resistor load. (AU Version)
  • Operating temperature: 0 °C to 40 °C .
  • Relative humidity: 8‐80%

Inclusion/Exclusion to/from a network

  1. Put controller to Inclusion/Exclusion mode
  2. Push z-wave button once to reset device. Device will be included/excluded to/from zwave network.

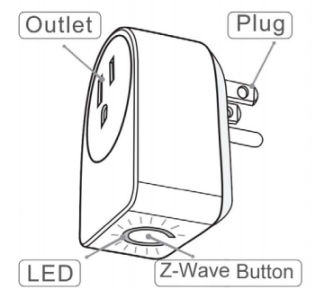

../../../_images/aeotec_smart_dimmer_desc.jpg

Configuration description

N/A
