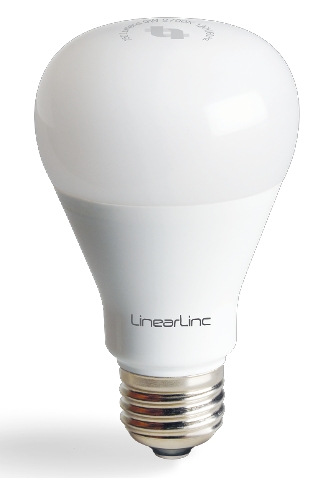

LinearLinc Dimmable LED light

GoControl Z-Wave Dimmable LED Light Bulb, LB60Z-1

../../../_images/linearlinc_dimmable_ledlight.jpg

Basic operation

  • Remote Control Operation
    The Smart LED Light Bulb can be controlled ON / OFF/ BRIGHT / DIM through wireless signals from the Z-Wave remote controller or through a gateway via an application on a smart phone, tablet, or PC. Once the Smart LED Light Bulb has been added to the network,depending on the functions supported by your controller, it can be assigned to a Group or Scene and operate when the ALL ON or ALL OFF command is received from the Controller. It can also be set in Association with another Z-Wave device to perform a specifi c duty.
  • Manual Operation
    The Smart LED Light Bulb can be manually operated using the wall switch while keeping it on-line with the Z-Wave network.
  • To manually turn the Smart LED Light Bulb ON:
    Flip the wall switch OFF then ON. Be sure the switch is ON when fi nished.
  • To manually turn the Smart LED Light Bulb OFF:
    Flip the wall switch OFF then ON twice within two seconds. Be sure the switch is ON when fi nished.

Specification

  • Power Supply: 120 VAC, 60 Hz
  • Brightness: 750 lumens (Equivalent to 60 Watt incandescent light bulb)
  • Power Consumption: 9 Watts
  • Color Temperature: 2700K
  • Bulb Lifetime: 25,000 hour (equivalent 22.8 years based on 3 hours/day)
  • Radio Frequency: 908.4 MHz / 916 MHz
  • Range: Up to 130 feet line of sight between the Z-Wave Controller and/or the closest Z-Wave Repeater
  • Normal Operating Temp: 77°F (25°C)
  • Repeater: Yes

Inclusion/Exclusion to/from a network

  1. Put controller to Inclusion/Exclusion mode
  2. Power OFF then power ON device
  3. Device flashes to indicate process completes

Configuration description

  1. Dim level memory
    • Parameter: 1 (0x01)
    • Size: 1 byte
    • Value:
      0 = the bulb will be full brightness when turned on. 1 = the bulb will turn on to the last dim level setting.
    • Default: 0
