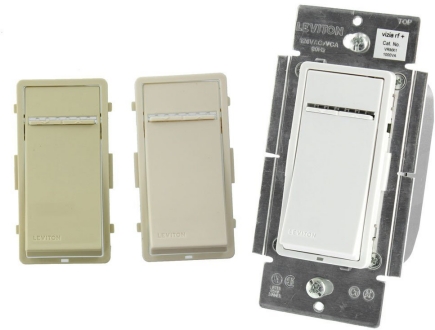

Leviton Universal Scene Dimmer VRMX1

Leviton VRMX1-1LZ 1000W Vizia RF Z-Wave Universal Scene Capable Dimmer, White/Ivory/Light Almond, Works with Amazon Alexa

../../../_images/leviton_universal_inwall_vrmx1.jpg

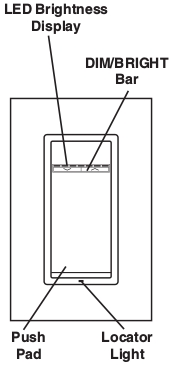

Operation

  • Tap once to turn ON to preset level
  • Press and hold to turn ON to full bright
  • Press once to turn OFF
  • Press the right half of the DIM/BRIGHT bar to brighten to disired level
  • Press the left half of the DIM/BRIGHT bar to dim to disired level
../../../_images/leviton_universal_inwall_vrmx1_button.jpg

Inclusion/Exclusion to/from a network

  • Push bottom paddle to include/exclude device to/from zwave network

Factory reset

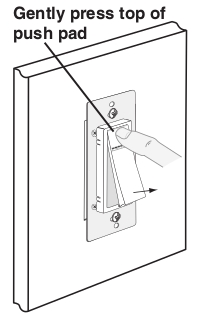

On the dimmer, engage the air-gap switch (refer to Operation section) and wait 5 seconds. Press the push pad back into the frame and hold push pad until the locator LED turns Amber and then turns Red. The dimmer is now reset. Once the dimmer is reset, it will be necessary to Re-Include it to a network before it can be used.

../../../_images/leviton_universal_inwall_vrmx1_airgap.jpg

Configuration description

There is no configuration in this device.
