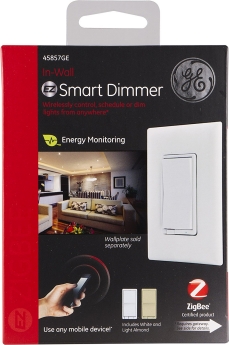

Jasco In-Wall Dimmer 45857¶
GE ZigBee In-Wall Smart Dimmer Switch, LED and CFL Compatible, with Energy Monitoring and HA1.2 Certification, 45857GE, Works with Amazon Alexa¶
Specification¶
- Power: 120 VAC, 60 Hz.
- Signal (Frequency): 2.4 Ghz IEEE 802.15.4.
- Maximum Loads: 600W, 2-gang 500W or 3-gang 400W incandescent.
- 150W CFL/LED, 2-gang 125W CFL/LED or 3-gang 100W CFL/LED.
- Range: Up to 100 feet line of sight between the Wireless Controller and the closest ZigBee receiver module.
- Operating Temperature: 77° F (25° C)
- For indoor use only.
- Complies with FCC and Industry Canada regulations
- Use 14 AWG or larger wires suitable for at least 80° C
- Specifications subject to change without notice due to continuing product improvement
Operation¶
- The connected light can be turned ON/OFF and adjust dim levels in two ways:
- Manually from the front panel of the In-wall Smart Dimmer
- Remotely with a ZigBee Controller
- The Front Panel Rocker Dimmer allows the user to:
- Turn ON/OFF the connected fixture.
- To turn the connected fixture ON: Press and release the top of the rocker.
- To turn the connected fixture OFF: Press and release the bottom of the rocker.
- Adjust dim level
- To increase brightness: press and hold the top of the rocker
- To decrease brightness: press and hold the bottom of the rocker.
Inclusion/Exclusion to/from a network¶
- Put controller into inclusion/exclusion mode
- Lift the air-gap switch at the bottom of the rocker to OFF position to power down the device.
- Hold down the UP button
- Push In the air-gap switch to ON position to power up the device.
#. Release UP button within 4 seconds after power up –> Device will be reset (exclude from zigbee network) and auto find open zigbee network to join
Link in Amazon¶
Configuration description¶
There is no configuration in this device.
