Enerwave in-wall dimmer¶

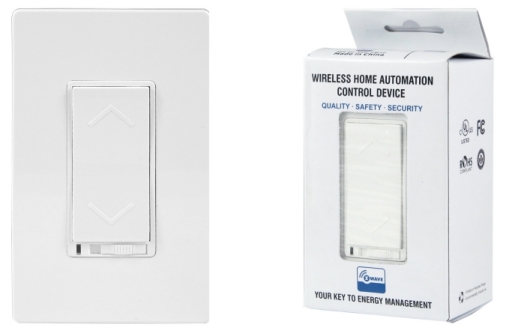

Enerwave ZW500D-W Z-Wave Wireless 3 Way Smart LED Light Dimmer Switch, NEUTRAL REQUIRED¶
Operation¶
Enerwave ZW500D Z-wave 500W Preset Dimmer Switch is a perfect wireless manual and remote on/off/dim/bright control replacement of regular on/off and dimmer switch, controlling incandescent, dimmable LED and CFL. This Z-Wave dimmer switch is fully compatible with other Z-wave devices, provides programmable function creating a perfect ambiance such as scenes, association, schedule event, etc
Specification¶
- Voltage: 120VAC, 60Hz
- Maximum load 500W Incandescent, Dimmable LED and CFL, suggested 10W or two light bulbs minimum
- Signal Frequency: 908.42 Mhz
- Range: Up to 100 feet in open-air and line of sight distance, depending on obstacles and blocks
- Terminations 5 Terminals for Line, Neutral, Load, Traveler and Ground
- Operation Temperature 32°F – 104°F (0°C -40 °C), Indoor Use
Inclusion/Exclusion to/from a network¶
- Put controller to Inclusion/Exclusion mode
- Push top or bottom paddle once to reset device. Device will be included/excluded to/from zwave network.
Link in Amazon¶
Configuration description¶
- LED light indication
- Parameter: 1 (0x01)
- Size: 1 byte
- Value:
- 0 = LED on when light off
- 1 = LED on when light on
- Default: 0
- Invert switch
- Parameter: 2 (0x02)
- Size: 1 byte
- Value:
- 0 = ON at the top and OFF at the bottom
- 1 = ON at the bottom and OFF at the top
- Default: 0
